MANUFACTURER/EXPORTER IN INDIA | ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43 CARBON, ALLOY, STAINLESS STEEL LONG/SHORT PATTERN STUB ENDS/LAP JOINTS
Texmo Alloys is a leading manufacturer, exporter and supplier of stainless steel bends, carbon steel bends, and alloy steel bends in a complete range of radius and diameters. Steel pipe bends can be manufactured from a wide range of pipe materials – including low and high yield carbon steels, alloy steels, stainless steels, Cr-Ni alloys and titanium. We specialise in the manufacture of large and small size stainless steel bends and piggable bends in grades Duplex, 310S, 304L, 316L, 317L, 347, 321, 904L.

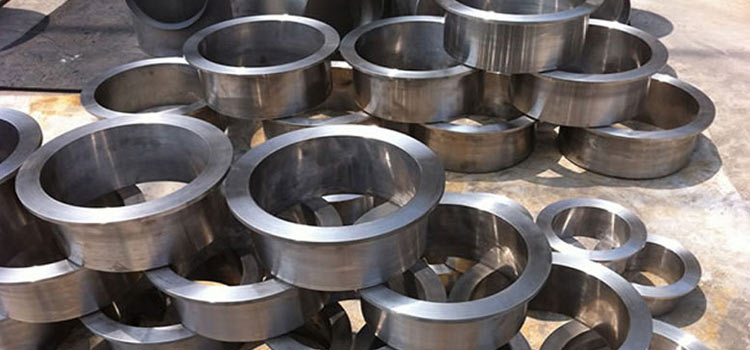

Stub ends are fittings used in place of welded flanges where rotating back up flanges are desired.
We manufacture and supply stub ends in various grades such as 304/304L, 304H, 316/316L, 321, 347, Duplex steel, 904L, Alloy 20, 317L and 310S. We supply stainless steel stub ends across various industry verticals such as power generation, oil and gas, petrochemical, chemical, fabrication and engineering, waste water treatment, and pharmaceutical industry.
They are mainly used with standard Lap Joint Flanges.Stub End/Lap Joint Production Range
| Outside Diameter: | 1/2″ – 24″ |
| Type: | Long/Short Stub Ends |
| Wall Thickness: | 2mm – 100 mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
Manufacturing Standards
| ASME: | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
| DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: | EN10253-1, EN10253-2 |
| ASTM A403 – ASME SA403 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 | Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Stub Ends Material Grades
| Stainless Steel Stub End | ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
| Carbon Steel Stub End | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Low Temperature Carbon Steel Stub End | ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Stub End | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Duplex Stub End | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462 |
| Nickel Alloy Stub End | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) |
Marking & Packing
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
Quality Assurance
At Texmo Alloys, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Test Certificates:
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
